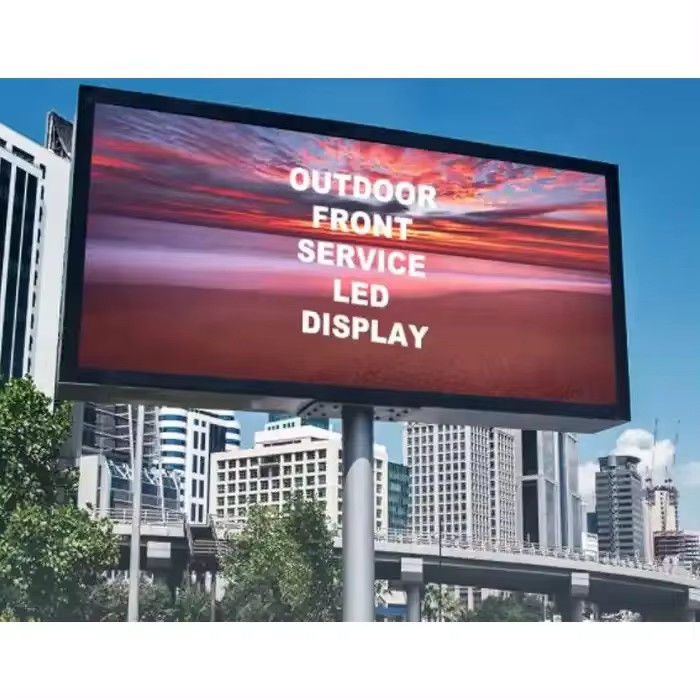

Outdoor Advertising LED Display Screen with IP65 Waterproof and 24h Online Display

Name: Outdoor Advertising LED Display Screen with IP65 Waterproof and 24h Online Display
Brand: Shenzhen Tewei Technology Co., Ltd.
SKU: HW-7.8
Price: 344.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: TEWEI

Certification: CE RoHS ISO9001 UL FCC CCC

Model Number: HW-7.8

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiation

Packaging Details: Flight Case/Plywooden Case

Delivery Time: 20-25 days

Payment Terms: T/T

Supply Ability: 4000 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                24h Online Display LED Display Screen, 24h Online Display Outdoor LED Screen, IP65 Waterproof Outdoor LED Screen


Type:	LED	Panel Size:	500*250mm
Supplier Type:	ODM, OEM, Original Manufacturer	Pixel Pitch:	7.8mm
Cabinet Size:	1000*1000mm	Brightness:	6000cd/㎡
Lifespan (hours):	100000	IP Rating:	IP65
View Angle（H/V）:	H 160/V 160	Product Name:	Led Video Display Panel
Warranty:	2years	Refresh Rate:	3840Hz
Operating Humidity:	10%-85%	Operating Temperature:	-20+50 Degree
Max Power Consumption:	700cd/㎡	Cabinet Weight(kg/pc):	26

Type:	LED
Panel Size:	500*250mm
Supplier Type:	ODM, OEM, Original Manufacturer
Pixel Pitch:	7.8mm
Cabinet Size:	1000*1000mm
Brightness:	6000cd/㎡
Lifespan (hours):	100000
IP Rating:	IP65
View Angle（H/V）:	H 160/V 160
Product Name:	Led Video Display Panel
Warranty:	2years
Refresh Rate:	3840Hz
Operating Humidity:	10%-85%
Operating Temperature:	-20+50 Degree
Max Power Consumption:	700cd/㎡
Cabinet Weight(kg/pc):	26

Outdoor Advertising LED Display Screen with IP65 Waterproof and 24h Online Display

Features:

Multiple pixel pitches are available, including 4.8mm, 6.25mm, 7.8mm, and 10.4mm.
High pixel density, with a maximum of 43264 dot/m².
Wide viewing angle, with both horizontal and vertical viewing angles of 160 degrees.
Adjustable brightness, with a maximum of 10000 cd/m².
Equipped with silent fan design for efficient heat dissipation and IP65 protection level.

Application scenarios:

Outdoor advertising display, such as commercial squares and street billboards.
Live broadcast of sports events, providing clear pictures and a wide viewing angle.
Stage performance background to enhance the visual effect.
Traffic information display, such as displays in stations and airports.
Enterprise publicity display to showcase the corporate image and product information.

Descriptions:

The LED type is SMD, the module size is 500x250mm, and the resolution varies depending on the model.
The gray scale is 14bit, and the refresh rate is 3840Hz, which can present clear and smooth images.
The screen body has anti-UV, anti-oxidation, and non-flammable properties, with high flatness and no deformation.
The high-performance metal plate cabinet has a spacious interior and simple cables.
The sealed back cover can effectively prevent misoperation by non-professionals

Model	HAWK 6.9	HAWK 8.3	HAWK 10.4
Pixel Pitch(mm)	P6.9	P8.3	P10.4
Pixel Density(dot/㎡)	20,736	14,400	9,216
LED Type	SMD2727	SMD3535	SMD3535
Module Size(mm*mm)	250*500	250*500	250*500
Module Resolution(dot*dot)	36*72	30*60	24*48
Cabinet Size(mmmmmm)	1000100089	1000100089	1000100089
Cabinet Resolution(dot*dot)	144*144	120*120	96*96
Cabinet Material	Aluminum
Cabinet Weight(kg)	24
Brihtness(cd/㎡)	6000~7000	6500~8500	6500~8500
Refresh Rate(hz)	1920~3840
Gray Scale(bit)	14
Viewing Angle(deg)	H 160/V140
Max Power Consumption(w/㎡)	700
Ave Power Consumption(w/㎡)	210
Input Voltage(V)	100~240
Working Temperature(℃)	-20~+60
Operation Humidity(rh)	10%~90%
Ingress Pritection	IP65
Working Environment	Outdoor
Life Span(H)	100,000
Certificate	CE/ETL/FCC
