Product Details
Place of Origin: Guangdong, China
Brand Name: TEWEI
Certification: CE RoHS ISO9001 UL CCC ETL FCC EMC LVD
Model Number: YX P1.25-P4mm
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden case, Flight case
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 4000 Set/Sets per Month
Application: |
Indoor/outdoor |
Type: |
LED |
Color: |
Full Color |
Panel Size: |
320mm*160mm |
Supplier Type: |
ODM, OEM, Original Manufacturer, |
Use: |
Stage, Wedding, Meeting, Concert, Advertising Publish |
Pixel Pitch: |
2.5mm |
Specification: |
Video Wall, Digital Poster, |
Brightness: |
800cd/㎡ |
Lifespan (hours): |
100000 |
IP Rating: |
IP31 |
View Angle（H/V）: |
120°, |
Product Name: |
Led Video Display Panel |
Certificate: |
CE ROHS FCC |
Warranty: |
2years |
Application: |
Indoor/outdoor |
Type: |
LED |
Color: |
Full Color |
Panel Size: |
320mm*160mm |
Supplier Type: |
ODM, OEM, Original Manufacturer, |
Use: |
Stage, Wedding, Meeting, Concert, Advertising Publish |
Pixel Pitch: |
2.5mm |
Specification: |
Video Wall, Digital Poster, |
Brightness: |
800cd/㎡ |
Lifespan (hours): |
100000 |
IP Rating: |
IP31 |
View Angle（H/V）: |
120°, |
Product Name: |
Led Video Display Panel |
Certificate: |
CE ROHS FCC |
Warranty: |
2years |
Flexible LED Display
Product Introduction:

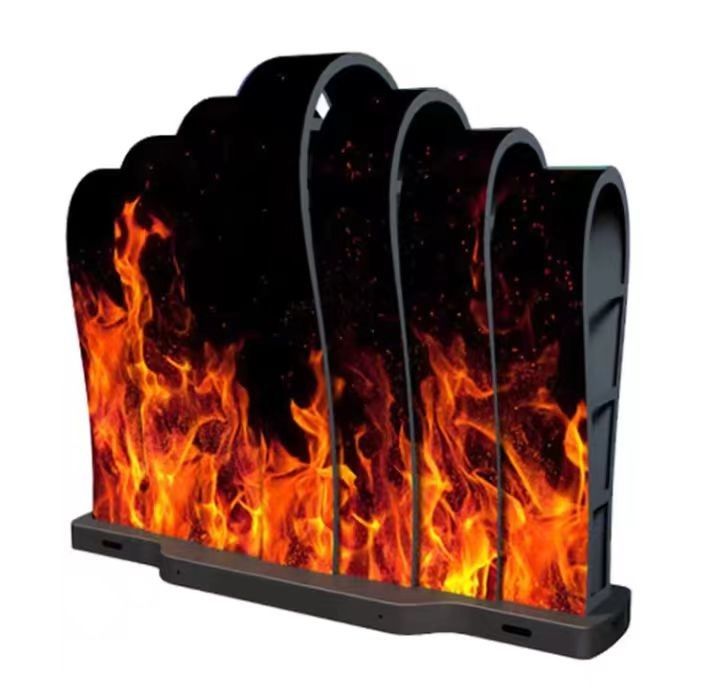

This Indoor Soft Module Curved Flexible Led Display Screen is suitable for cylindrical column use. It offers high-quality display with a variety of pixel pitches and sizes to choose from. The screen is flexible and can be curved to fit the shape of the column, providing a unique and immersive viewing experience.
Application Specifications:
| 240*120mm Dimension Models | |||||||
| Pixel Pitch | Pixels/㎡ | Resolution | Dimension | Scan | Refresh Rate | LED Model | Brightness |
| 1.25mm | 640000 | 192*96 | 240*120mm | 1/48 | ≥3840Hz | SMD1010 | 700-900cd |
| 1.5625mm | 409,600 | 128*96 | 240*120mm | 1/48 | ≥3840Hz | SMD1212 | 700-900cd |
| 1.579mm | 401111 | 152*76 | 240*120mm | 1/38 | ≥3840Hz | SMD1212 | 700-900cd |
| 1.667mm | 360000 | 144*72 | 240*120mm | "1/24 | ≥3840Hz | SMD1212 | 700-900cd |
| 1.875mm | 284444 | 128*64 | 240*120mm | "1/32 | ≥3840Hz | SMD1212 | 700-900cd |
| 2mm | 250000 | 120*60 | 240*120mm | "1/30 | ≥3840Hz | SMD1515 | 700-900cd |
| 2.5mm | 160000 | 96*48 | 240*120mm | "1/24 | ≥3840Hz | SMD1515 | 700-900cd |
| 3mm | 111111 | 80*40 | 240*120mm | "1/20 | ≥3840Hz | SMD2121 | 700-900cd |
| 4mm | 62500 | 60*30 | 240*120mm | "1/15 | ≥3840Hz | SMD2121 | 700-900cd |
| 256*128mm Dimension Models | |||||||
| Pixel Pitch | Pixels/㎡ | Resolution | Dimension | Scan | Refresh Rate | LED Model | Brightness |
| 2mm | 250000 | 128*64 | 256*128mm | 1/32 | ≥1920Hz | SMD1515 | 700-900cd |
| 4mm | 62500 | 64*32 | 256*128mm | "1/16 | ≥1920Hz | SMD2121 | 700-900cd |
| 320*160mm Dimension Models | |||||||
| Pixel Pitch | Pixels/㎡ | Resolution | Dimension | Scan | Refresh Rate | LED Model | Brightness |
| 1.86mm | 288906 | 172*160 | 320*160mm | "1/43 | ≥3840Hz | SMD2121 | 700-900cd |
| 2mm | 250000 | 160*80 | 320*160mm | "1/40 | ≥3840Hz | SMD1515 | 700-900cd |
| 2.5mm | 160000 | 128*64 | 320*160mm | "1/32 | ≥3840Hz | SMD1515 | 700-900cd |
| 3mm | 105625 | 104*52 | 320*160mm | "1/26 | ≥3840Hz | SMD2121 | 700-900cd |
| 4mm | 62500 | 80*40 | 320*160mm | "1/16 | ≥3840Hz | SMD2121 | 700-900cd |
| 5mm | 40000 | 64*32 | 320*160mm | "1/16 | ≥3840Hz | SMD2121 | 700-900cd |
| 8mm | 15625 | 40*20 | 320*160mm | "1/5 | ≥3840Hz | SMD2121 | 700-900cd |
| Outdoor Waterproof Models | |||||||
| Pixel Pitch | Pixels/㎡ | Resolution | Dimension | Scan | Refresh Rate | LED Model | Brightness |
| 2.5mm | 160000 | 128*64 | 320*160mm | "1/24 | ≥3840Hz | SMD1415 | 4500-5000cd |
| 3mm | 97656 | 80*40 | 256*128mm | "1/20 | ≥3840Hz | SMD1921 | 4500-5000cd |
| 4mm | 62500 | 80*40 | 320*160mm | "1/16 | ≥3840Hz | SMD1921 | 4500-5000cd |
| 5mm | 40000 | 64*32 | 320*160mm | "1/16 | ≥3840Hz | SMD1921 | 4500-5000cd |
| 8mm | 15625 | 40*29 | 320*160mm | "1/5 | ≥3840Hz | SMD3535 | 4500-5000cd |
