Product Details
Place of Origin: Guangdong, China
Brand Name: TEWEI
Certification: EMC/CE/FCC/LVD/ETL/ROHS
Model Number: DF-1.9mm/2.6mm/3.1mm/3.9mm
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Cases/Flight Cases
Delivery Time: 15-20 days
Payment Terms: T/T
Supply Ability: 4000 Set/Sets per Month
Application: |
Indoor |
Type: |
LED |
Color: |
Full Color |
Panel Size: |
500mm*500mm, 750mm*250mm |
Supplier Type: |
ODM, OEM |
Pixel Pitch: |
1.9mm,2.6mm,3.9mm |
Use: |
Stage, Wedding, Meeting, Concert |
Specification: |
Video Wall |
Brightness: |
800 Cd/㎡, 800 Cd/㎡ |
Lifespan (hours): |
100000, 100000 |
IP Rating: |
IP30 |
HS Code: |
8528591090 |
View Angle(H/V): |
140°, 140° |
Product Name: |
Led Video Display Panel |
Certificate: |
CE ROHS FCC ISO |
Warranty: |
2years |
Application: |
Indoor |
Type: |
LED |
Color: |
Full Color |
Panel Size: |
500mm*500mm, 750mm*250mm |
Supplier Type: |
ODM, OEM |
Pixel Pitch: |
1.9mm,2.6mm,3.9mm |
Use: |
Stage, Wedding, Meeting, Concert |
Specification: |
Video Wall |
Brightness: |
800 Cd/㎡, 800 Cd/㎡ |
Lifespan (hours): |
100000, 100000 |
IP Rating: |
IP30 |
HS Code: |
8528591090 |
View Angle(H/V): |
140°, 140° |
Product Name: |
Led Video Display Panel |
Certificate: |
CE ROHS FCC ISO |
Warranty: |
2years |

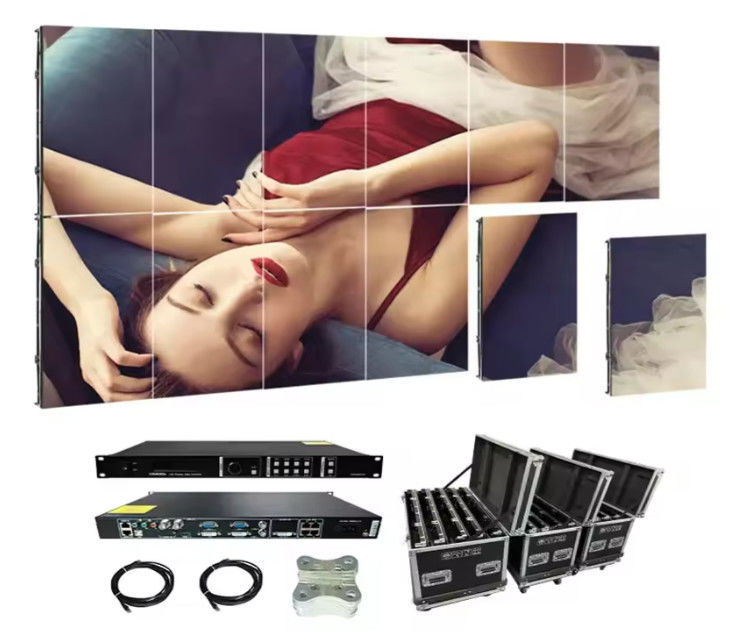

Product Introduction:
This Indoor Fixed Led Display Screen is a high-quality display screen that is suitable for a wide range of indoor
applications. It is designed to provide clear and vivid images, making it an ideal choice for advertising, exhibitions, and
other events.
Model | TW-DF1.9 | TW-DF2.6 | TW-DF3.9 |
Pixel Pitch(mm) | P1.9 | P2.6 | P3.9 |
Pixel Density(dot/㎡) | 262144 | 147456 | 65536 |
LED Type | SMD1515 | SMD2121 | SMD2121 |
Module Size(mm*mm) | 250*250 | ||
Module Resolution(dot*dot) | 128*128 | 96*96 | 64*64 |
Cabinet Size(mm*mm*mm) | 1000*500*43 | ||
Cabinet Resolution(dot*dot) | 512*256 | 384*192 | 256*128 |
Cabinet Material | Aluminum | ||
Cabinet Weight(kg) | 7.5 | ||
Brihtness(cd/㎡) | 800~1000 | ||
Refresh Rate(hz) | 3840 | ||
Gray Scale(bit) | 14 | ||
Viewing Angle(deg) | H 160/V140 | ||
Max Power Consumption(w/㎡) | 440 | ||
Ave Power Consumption(w/㎡) | 130 | ||
Input Voltage(V) | 100~240 | ||
Working Temperature(℃) | -20~+60 | ||
Operation Humidity(rh) | 10%~90% | ||
Ingress Pritection | IP21 | ||
Working Environment | Indoor | ||
Life Span(H) | 100,000 | ||
Certificate | CE/ETL/FCC |
